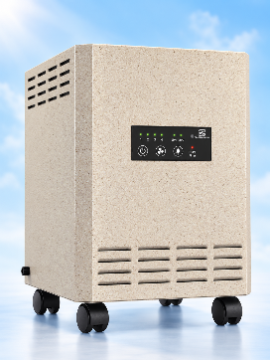

TRACS® Portable UV-C Air Purifier
- Coverage 1,875 sq ft per hour, 937 sq ft every 30 mins
- Three- Stage Air Purification, UVC, Carbon and Hepa
- Activated Merv 8 Carbon Filter eliminating VOC’s
- H13 Hepa Filter 99.99% efficiency at .3 Microns and last up to 5 years
- Highest UVC 254 NM Dosage 18,415 microwatt sec/cm2
- All Steel Welded Construction with Powder Coat Finish
- Lowest annual operating cost of any Air Purifier utilizing UVGI Technology
- Eliminates- Viruses, Pet Dander, Smoke, Dust, Odors, Mold, Bacteria, Pollen, VOC’s
- 5 Year Mechanical Warranty

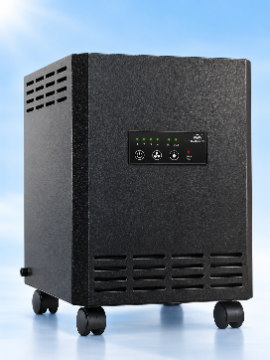

TRACS® Portable UV-C Air Purifier TM-250 is a portable, multi-stage air purifier that combines medical-grade H13 HEPA filtration which removes 99.99% of air particulates, activated carbon filtration to remove odors and gases, and ultraviolet germicidal irradiation (UV-C light) technology known to disable viruses and bacteria.
Read a recent report on how ultra-violet germicidal irradiation works by clicking here
Covering up to 1,875 sqft, our advanced technology, quiet operation, and low-cost maintenance helps make TRACS® the air purifier of the future. The TRACS® portable UV-C air purifier is the only medical grade air purifier assembled in the USA out of solid steel with a life-time guarantee.
Features Include:
- Commercial quality portable version of our medical grade ceiling mounted air purifier installed in hospitals and other medical facilities
- Medical grade HEPA filter traps bacteria and viruses
- HEPA filter life is up to 5 Years
- CarbonWeb® Merv 8 pre-filter removes odors and toxic gases
- Highest UVC 254 NM Dosage 18,415 microwatt sec/cm2
- Four-speed inverse impeller fan features "Whisper Mode"

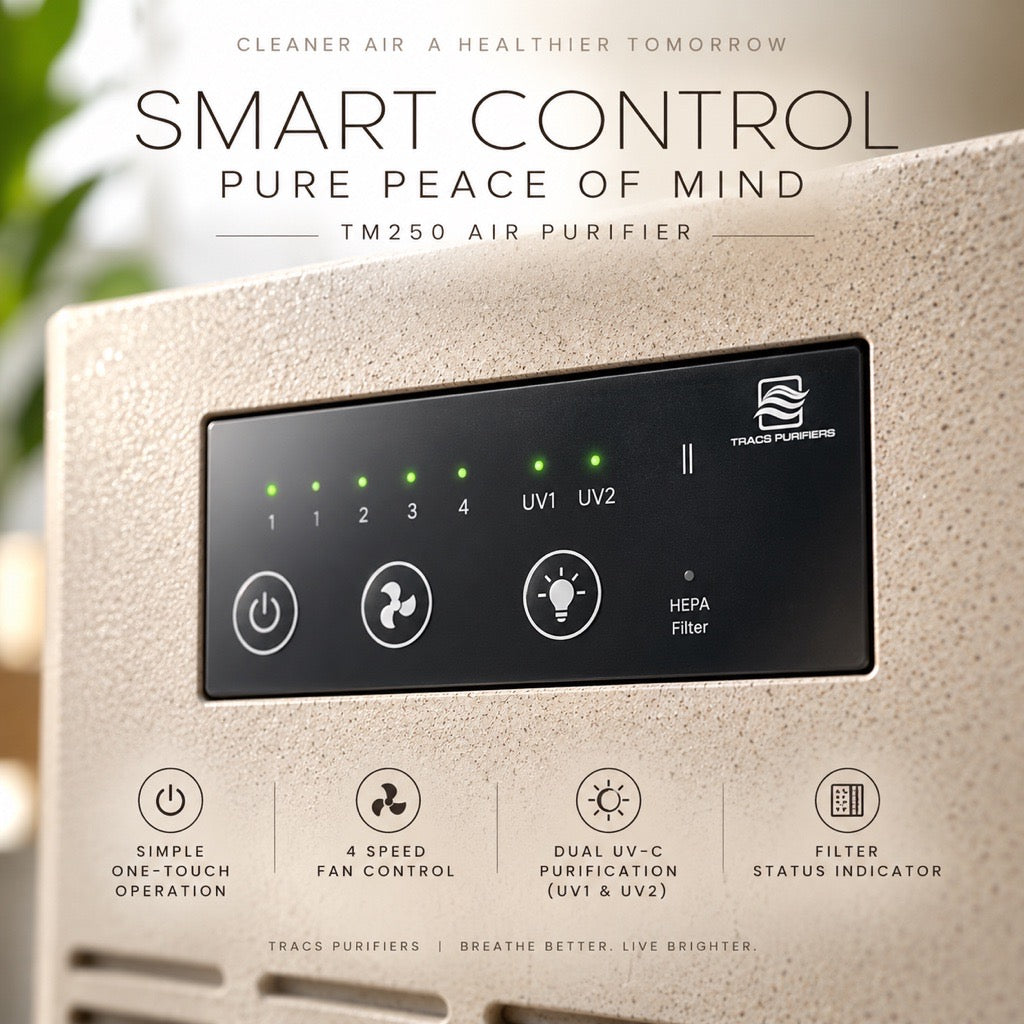

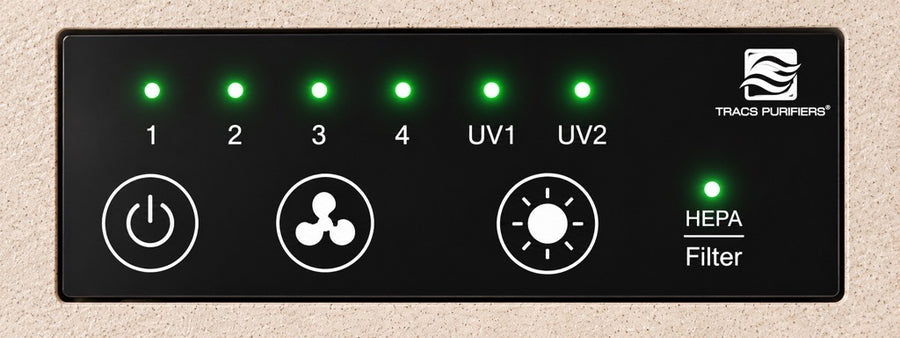

- Indicator lights let you know exactly when to replace lamps and HEPA filter
- Coverage 1,875 sq. ft. per hour, 937 sq. ft. every 30 mins
- Lowest annual operating cost of any Air Purifier utilizing UVGI Technology
- Made from solid-steel in USA, welded together, with a powder-coated finish
- Lifetime warranty on the frame, 5 year warranty on everything else
- 30 Day - 100% money back guarantee
- Read more details and technical specifications below
Benefits
- Eliminates- Viruses, Pet Dander, Smoke, Dust, Odors, Mold, Bacteria, Pollen, VOC’s
- USA Made
- Lowest annual operating cost of any Air Purifier utilizing UVGI Technology
- 5 Year Mechanical Warranty
- Free Shipping within the United States
- 30-day Money Back Guarantee
- Affordable Replacement Costs with Auto-Refill Program
Because our air purifiers with patented UV-C technology are made in the USA, we offer a lifetime warranty on the frame, 5 years on the mechanical stuff, and a 30 day money back guarantee.
Ultraviolet Germicidal Irradiation (UVGI) employing UV-C light has been used as a means of destroying airborne bacteria and disease for years. Airborne microorganisms have been shown to be destroyed when subjected to certain levels of UV-C light at certain wavelengths (254nm).
Click here to read a current report on how UV-C light inactivated airborne human coronaviruses
Viruses may be small enough to slip by a HEPA filter, but most viruses are very susceptible to the effects of UV light. The UV lamps in the TRACS Manufacturing portable commercial air purifier radiate on the HEPA filter, where the dust, bacteria, and microorganisms are collected.
In HEPA-only systems, mold and microbial growth can occur on the HEPA filter, so HEPA filters must be replaced at least once per year (even if the HEPA filter is not clogged). If they are not replaced, the microorganisms can actually eat through the HEPA media (this is known as bacteria grow-through), and be dispersed throughout the room.
However, in our portable commercial UV-C model, the HEPA filter is constantly bathed in UV light, so mold and microbial growth cannot occur. As such, the HEPA filters in our systems can last up to three years (depending on particulate load), thereby lowering unit maintenance costs.
We patented the distance between the HEPA filter and UV-light and by having the UV shining on the “dirty” filter, all trapped microorganisms are deactivated, making it safer for the maintenance personnel to change and handle the spent filter.
In summary, UVGI is an effective and valuable secondary or backup technology for high risk infection control applications. Imagine what it could do for your gym, office, or home.

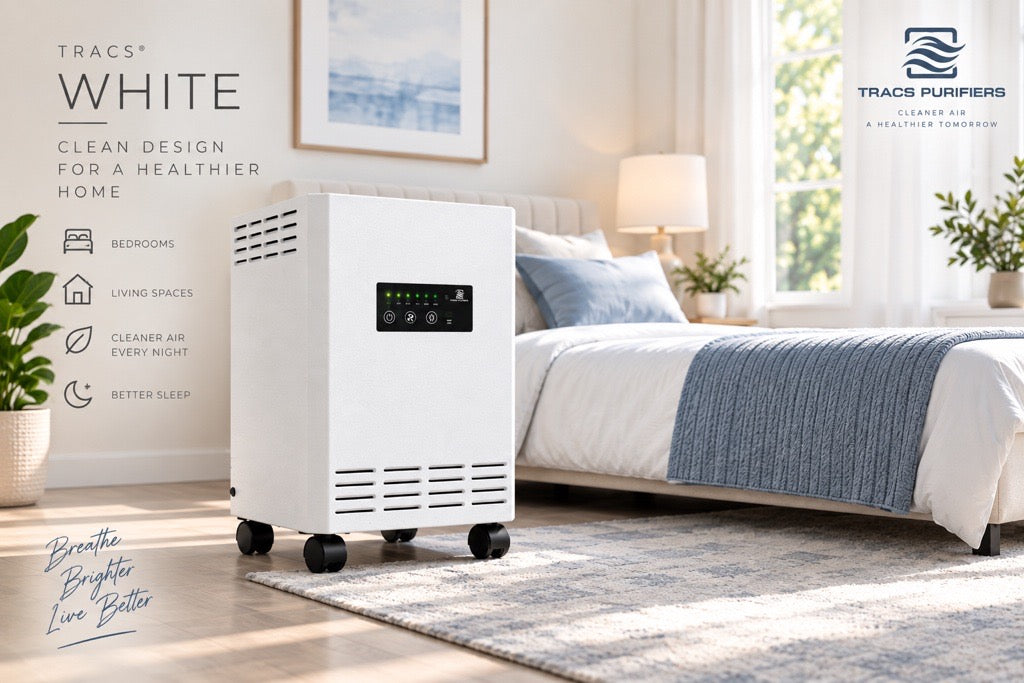

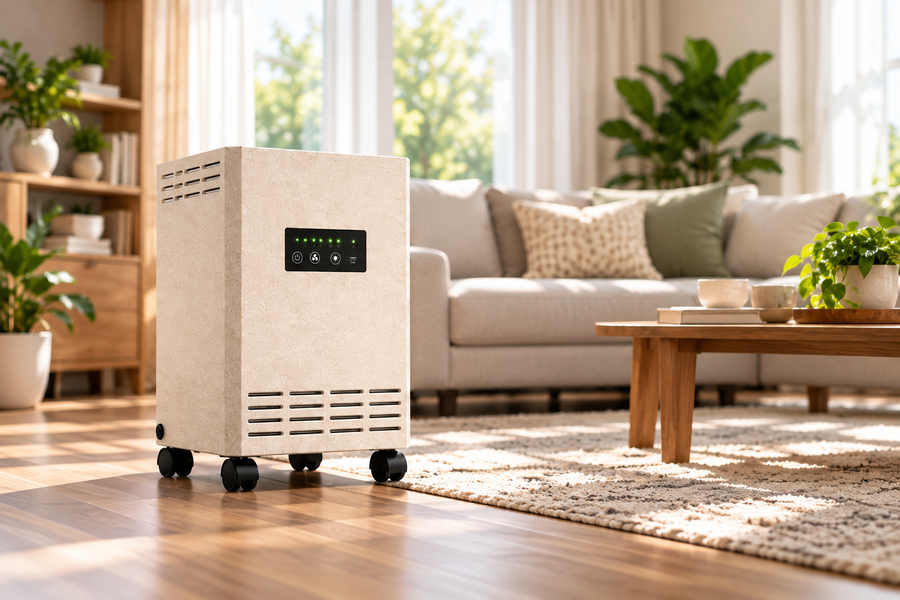

- Resdential Homes, Condos, Townhomes
- Mobile Homes
- Recreational Vehicles
- Senior living facilities
- Gyms & fitness centers
- Doctors/Dentist offices
- Educational classrooms
- Office building lobbies
- Medical office waiting areas
- General office space
- Daycare centers
- Examination rooms
- Homeless shelters
- Anywhere with a high risk of airborne bacteria and disease
| CFM | 85 CFM, 150 CFM, 200 CFM, 250 CFM |
| Electrical | 120 volt, 60 Hz, single phase, 1 amp, 100 watts, 6 foot cord |
| Room Size | Coverage 1,875 sq. ft. per hour, 937 sq. ft. every 30 mins |

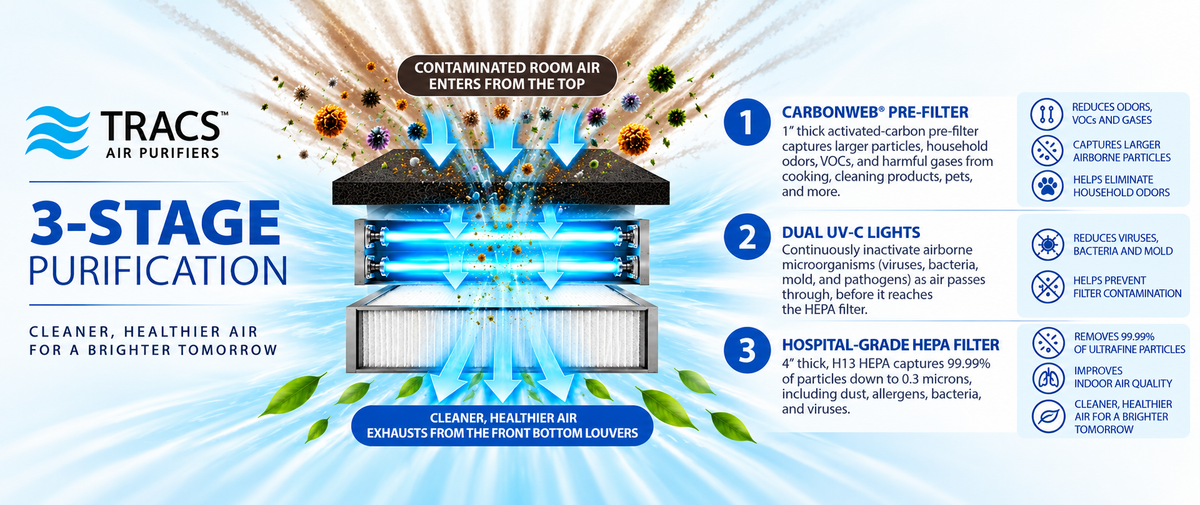

| Air Purification | Three- Stage Air Purification, UVC, Carbon and HEPA |
| Carbon Filter | Activated Merv 8 Carbon Filter eliminating VOC’s |
| HEPA Filter | H13 Hepa Filter 99.99% efficiency at .3 Microns |
| UVC | Highest UVC 254 NM Dosage 18,415 microwatt sec/cm2 |
| Dimensions | 15.5" W x 15.5" D x 21.5" H |
| Weight | 46 lbs, Packaged Weight 52 lbs |
| Decibel | Whisper Mode- 44 DB Low- 49 DB Medium- 55 DB High- 59 DB |
| Controls | 4 Speed Controller (54W, 65W, 81W, 100W) |
| Construction | All Steel Welded Construction with Powder Coat Finish |
| Warranty | 30 day money back guarantee, 5 year mechanical warranty, and life-time warranty on the welded and powder-coated frame |
| Maintenance Costs | CarbonWeb Pre-Filter Cartridge: replace every 30-180 days, depending on application, cost is $29 each ($23 with auto refill) Medical Grade HEPA filter: up to 5 years for the life, cost is $149 ($119 with auto-refill) UV-C Lamps: change when indicator light goes out, about every 18 months, cost is $39 ($31 with auto-refill) |
Medical Grade HEPA Filter Lorem Ipsum
For over eighty years High Efficiency Particulate Air Filters (HEPA) filters have been the primary mechanism used for removing airborne pathogens, microorganisms, dust, and particulate from the air at very high efficiencies. Standard certified HEPA filters are 99.99% efficient at .3 microns and higher, meaning they are individually tested to perform at that efficiency. If a product contains a HEPA filter that is not certified, then it may not perform at HEPA efficiency. This is the case with many commercial units that claim to have “true” HEPA filters. There are many air purifiers on the market today where the media may be HEPA efficiency but it is not adequately gasketed within the filter frame allowing gases and toxic odors to bypass the filter.
“Certified” HEPA filters are individually DOP tested to ensure efficiency. The HEPA filters used in the TRACS Manufacturing ceiling mounted purifiers are all reverse gel seal filters certified to perform at 99.99% efficiency at .3 microns, and the HEPA filter is securely sealed within the cabinet to prevent air bypass around it.
CarbonWeb pre-filter:
TRACS Manufacturing employs activated CarbonWeb cartridges ($29 refill every 6 months) in the pre-filter process to remove toxic gases and odors too small to be stopped by the HEPA filter.
Theoretically, we can remove almost all particulate matter from the air stream. We are now faced with “how should the gases and vapors – the chemical pollution – be removed?” HEPA filtration is effective down to the .3 micron range and will remove some particulates smaller than .3 microns. Gases and vapors are .01 microns and smaller. <br><br>Benzene and naphthalene, two compounds that are strongly adsorbed by carbon, are approximately .0006 and .0007 microns respectively. One micron equals 1/25,400 of an inch. Very simply, particulate filters do not, and can not, remove material that is this small and is a gas. If particulate means cannot be used to remove gases, then how can they be removed?
For HVAC applications, where the concentrations are very low and the contaminant loading varies constantly, adsorption has proven to be the most effective and the most economical process.
Adsorption with activated carbon is also the process of choice for applications such as gas masks, space capsules, nuclear submarines and radioactive iodine removal (nuclear plants). Are there other processes to remove gases from an air stream? Certainly, there are other processes. When higher concentrations are present, incineration, chemisorption and solvent recovery [an adsorptive process] all have their places.
